Third generation decoder

Introduction.

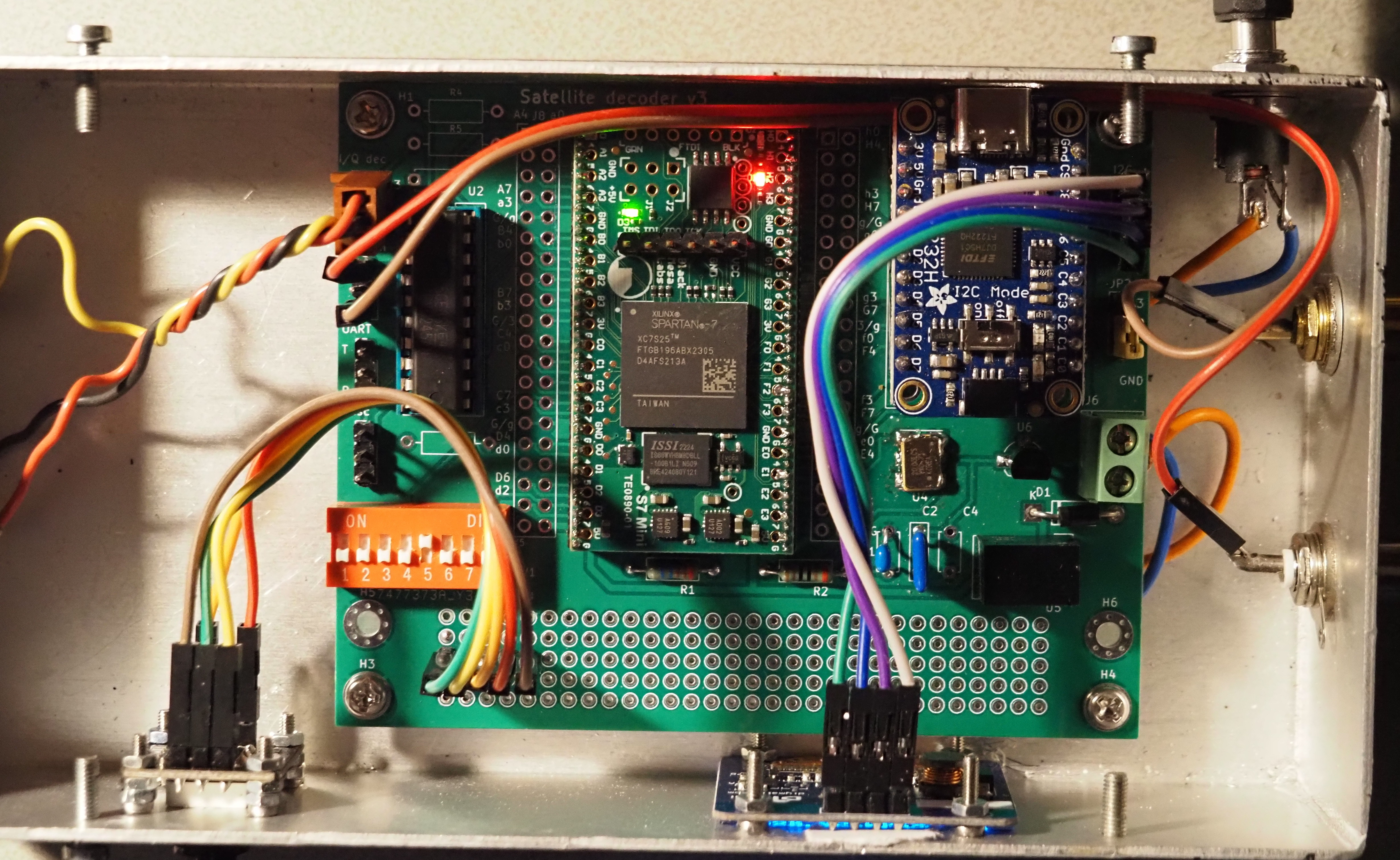

This page describes the v3 decoder for HRPT/BPSK and QPSK formats. This is an upgrade of the v2 decoder; hardware for that decoer (GODIL) is not available anymore. Theused FPGA is a Xilinx Spartan7 FPGA XC7S25.

Features:

Decoders: switchable from software ('wsat') or 'real' swicthes
- PSK: HRPT and Meteor-AHRPT
- QPSK: METOP, Fengyun-3D, NOAA20, NOAA21, Aqua
decoder and generator for each type available at the same time
Bit integrator for noise canceller
Registermap for settings and monitoring via software
USB interface
OLED display

OLED display

row 1: name satellite, right: m=manual, a=auto; 3:
row 2: format and symbol rate
row 3: sync state, '!' = out-sync, holds for a second, to show short out-of-sync
row 4: status data transfer to PC, '!' = data transfer too slow, holds for a second

Manual choice satellite type can be done e.g. using dipswitch, and/or using a Fermion 8421 Encoder.

Programming the S7Mini

You need installed Vivado and a JTAG upload cable. Bit- and command files:

s7mini_satdecgen.zip

Contains:

      555  2025-04-04 22:53   prog_s7mini.txt
     3411  2025-04-04 22:43   prog_s7mini.tcl
  1241909  2025-03-10 14:14   satdecgen.bin
  1241909  2025-03-10 14:14   satdecgen.bit

See .txt for more info and the commands to use.
